Description
The BRIGHT ALPHA 40E Baseplate 2-Post Lift is a heavy-duty electro-hydraulic vehicle lift designed for professional automotive workshops, service centers, and repair garages. With a 4,000kg (4 Ton) lifting capacity, this robust baseplate lift provides the strength and stability required to safely lift passenger cars, SUVs, pickups, and light commercial vehicles for maintenance and repair. Its baseplate design makes it an excellent solution for workshops with lower ceiling heights while maintaining exceptional lifting performance.
Engineered for long-term durability, the ALPHA 40E features 5mm thick steel columns, a 16mm reinforced baseplate, and 14mm heavy-duty carriage plates to withstand demanding workshop conditions. Reinforced lifting arms resist bending under heavy loads, while the precision gear locking system ensures secure vehicle support throughout the lifting process. The 115mm steel cable pulley minimizes cable wear, delivering smooth and reliable operation. Additional safety features include a height-limit microswitch, foot guardrails, and a low-profile 28mm baseplate for easy vehicle access and improved workshop efficiency.
Whether you’re performing engine repairs, brake servicing, suspension work, tire replacement, or routine vehicle maintenance, the BRIGHT ALPHA 40E delivers dependable performance, superior safety, and professional reliability for busy workshops.
Key Features
- Heavy-duty 4 Ton (4000kg) lifting capacity
- Electro-hydraulic 2-post baseplate lift
- Heavy-duty 5mm steel columns
- Reinforced 16mm baseplate for maximum stability
- Heavy-duty 14mm carriage plates
- Reinforced lifting arms for increased durability
- Precision fine-tooth safety locking system
- 115mm steel cable pulley for smooth lifting
- Height-limit microswitch for added safety
- Foot guardrails included
- Low-profile 28mm baseplate
- Suitable for professional automotive workshops
Benefits
- Safely lifts a wide range of passenger vehicles
- Ideal for workshops with limited ceiling height
- Durable construction for long service life
- Smooth, stable, and reliable lifting operation
- Advanced safety systems protect operators and vehicles
- Improves workshop productivity and efficiency
- Built for continuous professional use
Applications
- Automotive repair workshops
- Vehicle service centers
- Brake and suspension repairs
- Engine and transmission servicing
- Tire replacement
- General vehicle maintenance
- Fleet maintenance facilities

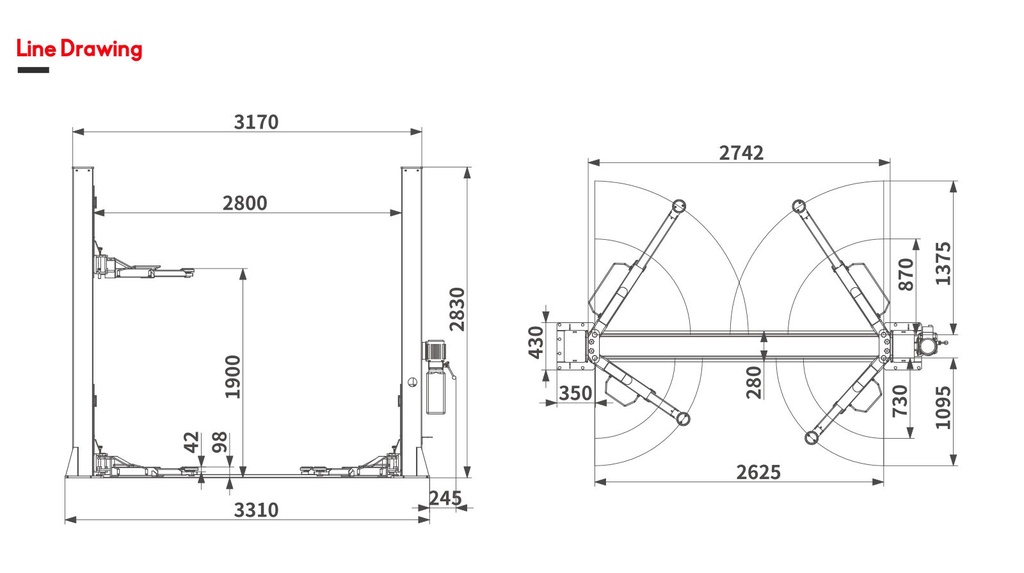

Technical Specifications
| Specification | Details |
|---|---|
| Model | BRIGHT ALPHA 40E |
| Lift Type | Baseplate 2-Post Lift |
| Lifting Capacity | 4000kg (4 Ton) |
| Maximum Lifting Height | 1900mm |
| Minimum Height | 98mm |
| Lifting Time | 40 Seconds |
| Overall Height | 2830mm |
| Overall Width | 3350mm |
| Distance Between Posts | 2800mm |
| Motor Power | 2.2kW |
| Power Supply | 220V / 380V |
| Baseplate Height | 28mm |
Package Includes
- BRIGHT ALPHA 40E 2-Post Lift
- Hydraulic Power Unit
- Lifting Arms
- Safety Locking System
- Installation Hardware
- User Manual
