Description
The BRIGHT KAPPA500 4-Post Alignment Lift is a heavy-duty wheel alignment lift designed for professional automotive workshops, tire service centers, and vehicle inspection facilities. With a 5,000kg (5 Ton) lifting capacity, this robust electro-hydraulic lift is engineered to safely lift passenger cars, SUVs, vans, and light commercial vehicles for wheel alignment, suspension work, and general maintenance.
Featuring an extended platform, the KAPPA500 accommodates a wide range of vehicle wheelbases, while the adjustable runway spacing allows it to handle different vehicle widths with ease. Its pneumatic four-point locking system provides fast, secure locking and unlocking, ensuring safe and efficient operation during every lift. The hydraulic power unit includes an oil flow adjustment system for smooth and controlled lowering, enhancing both operator safety and equipment longevity.
Built with professional safety in mind, the KAPPA500 incorporates a steel cable breakage protection system, a 24V low-voltage control system, and has successfully passed 115% dynamic load and 150% static load testing. It also supports an optional 3-ton jacking beam, allowing independent lifting of the vehicle wheels during alignment and repair operations. Whether you’re performing wheel alignment, suspension repairs, or underbody inspections, the BRIGHT KAPPA500 delivers exceptional reliability, durability, and workshop efficiency.
Key Features
- Heavy-duty 5 Ton (5000kg) lifting capacity
- Professional 4-post wheel alignment lift
- Extended runways for longer wheelbase vehicles
- Pneumatic 4-point locking system
- Electro-hydraulic lifting system
- Adjustable runway spacing
- Hydraulic lowering speed control
- Steel cable breakage protection device
- Safe 24V electrical control system
- Compatible with optional 3 Ton jacking beam
- Passed 115% dynamic and 150% static load testing
Benefits
- Ideal for professional wheel alignment services
- Accommodates a wide range of vehicle sizes
- Provides stable and secure lifting
- Improves workshop productivity
- Smooth and controlled lifting and lowering
- Enhanced operator safety with multiple protection systems
- Built for long-term heavy-duty workshop use
Applications
- Wheel alignment workshops
- Automotive service centers
- Tire service shops
- Suspension and steering repairs
- Vehicle inspections
- General automotive maintenance
- Fleet maintenance facilities

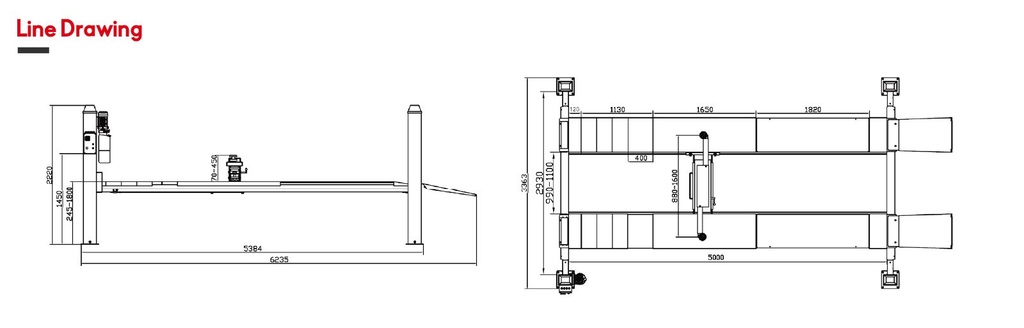

Technical Specifications
| Specification | Details |
|---|---|
| Model | BRIGHT KAPPA500 |
| Lift Type | 4-Post Wheel Alignment Lift |
| Lifting Capacity | 5000kg (5 Ton) |
| Maximum Lifting Height | 1800mm |
| Minimum Height | 245mm |
| Optional Jacking Beam Capacity | 3000kg |
| Jacking Beam Height | 50–450mm |
| Air Pressure | 6–8 Bar |
| Control Voltage | 24V |
| Safety Lock | Pneumatic 4-Point Locking System |
| Lowering Control | Hydraulic Flow Adjustment |
| Safety Protection | Steel Cable Breakage Protection |
Package Includes
- BRIGHT KAPPA500 4-Post Alignment Lift
- Electric Control Panel
- Pneumatic Locking System
- Drive-on Ramps
- Turntable Spacer Blocks
- Installation Hardware
- User Manual
Optional 3 Ton Jacking Beam sold separately.
